Key Features
The PNM-12082RVD is an outdoor vandal-rated network camera featuring 2 Channels, with IR in a dome camera form factor. Featuring 6MP X 2 sensors, each at 15fps with a 3.4~6.8mm(2x) (95.08°~47.64°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG). The IR viewable length is 25m (82ft), and features a USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, & Handover. License-free intelligent video analytics include: Virtual line/direction, Enter/Exit, Appear/Disappear, Loitering, intrusion, Defocus detection, Motion detection, Tampering. Audio detection, Sound classification (with optional I/O Box). FIPS 140-2, micro SD card 512GB, IP66, NEMA4X, IK10. Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubble
Description

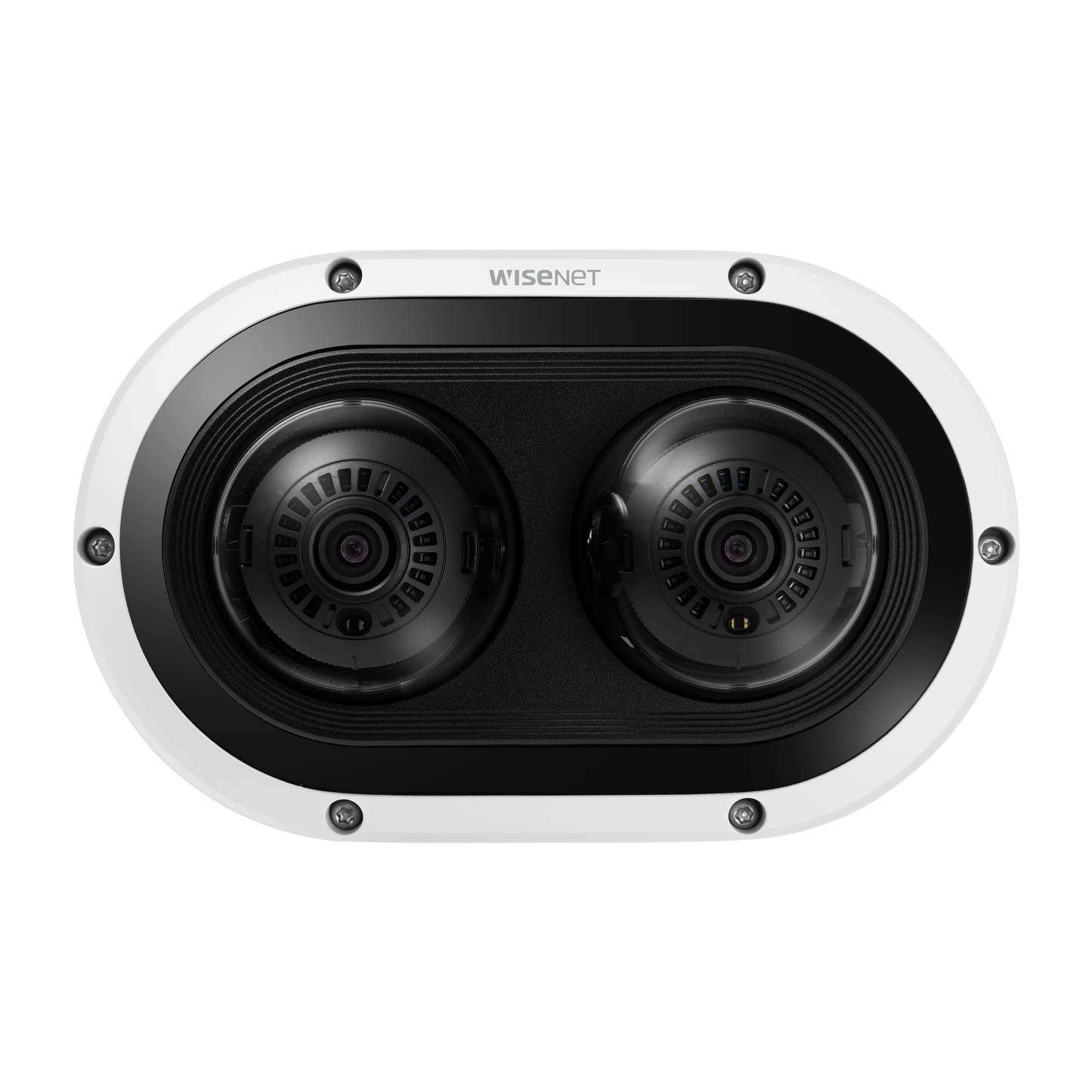

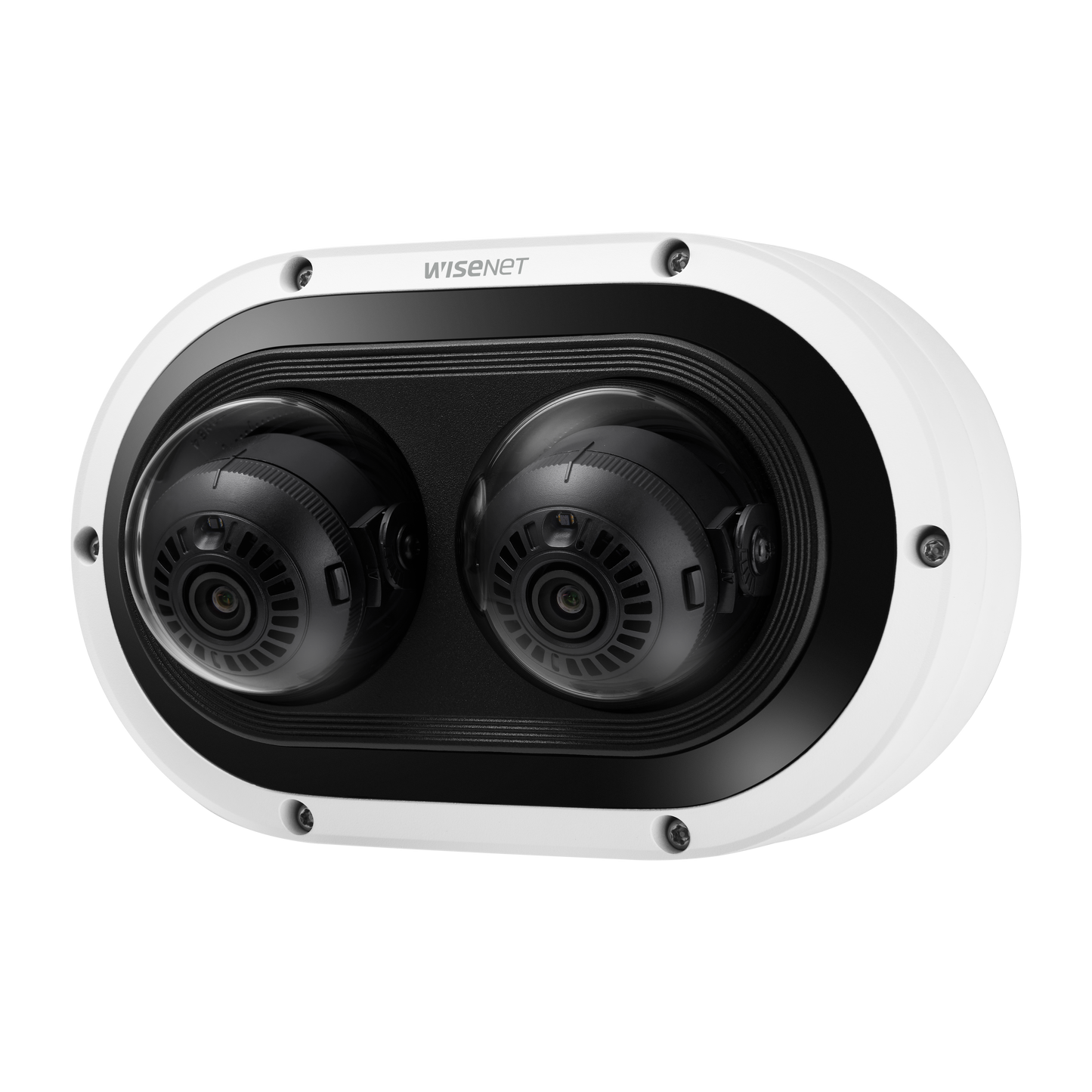

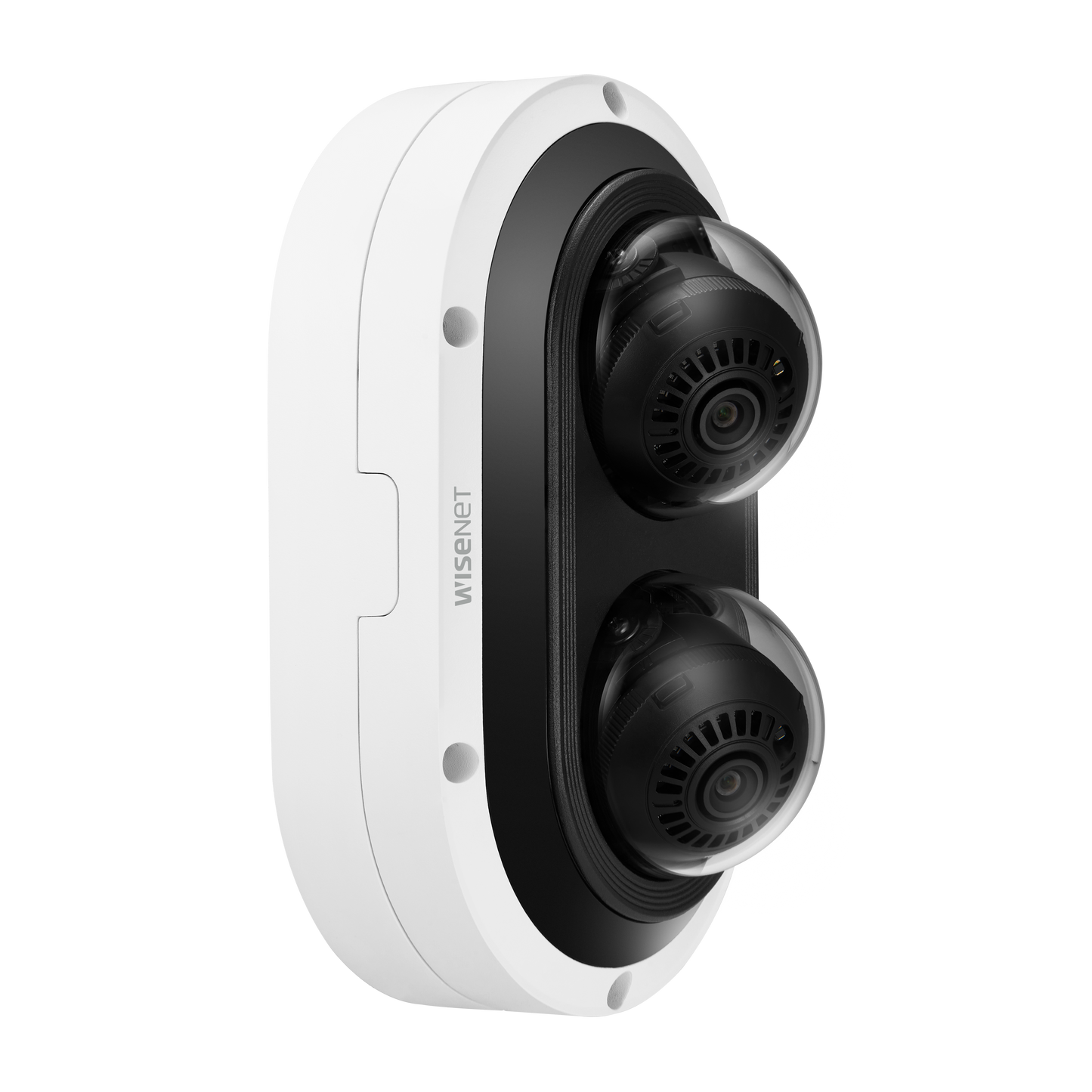

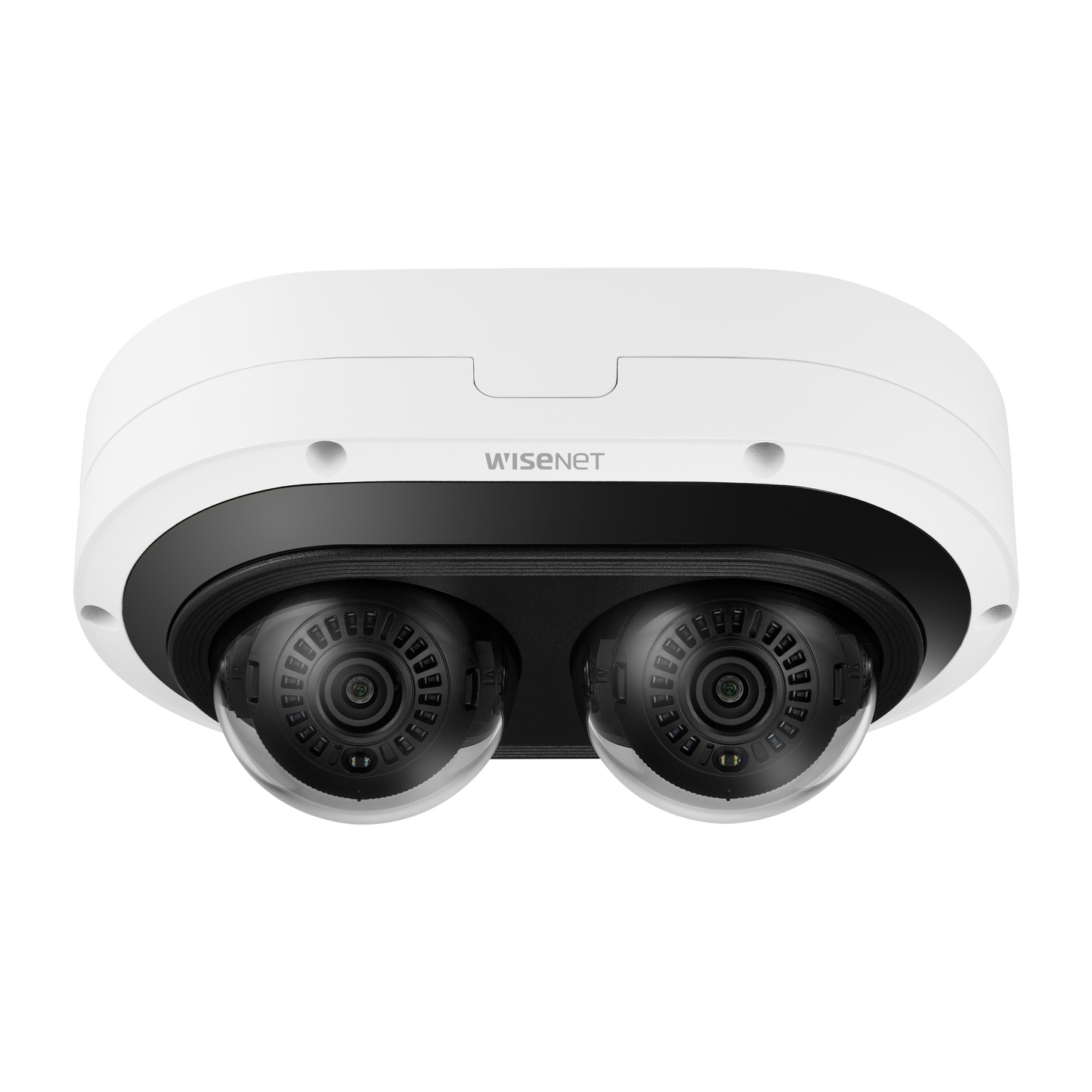

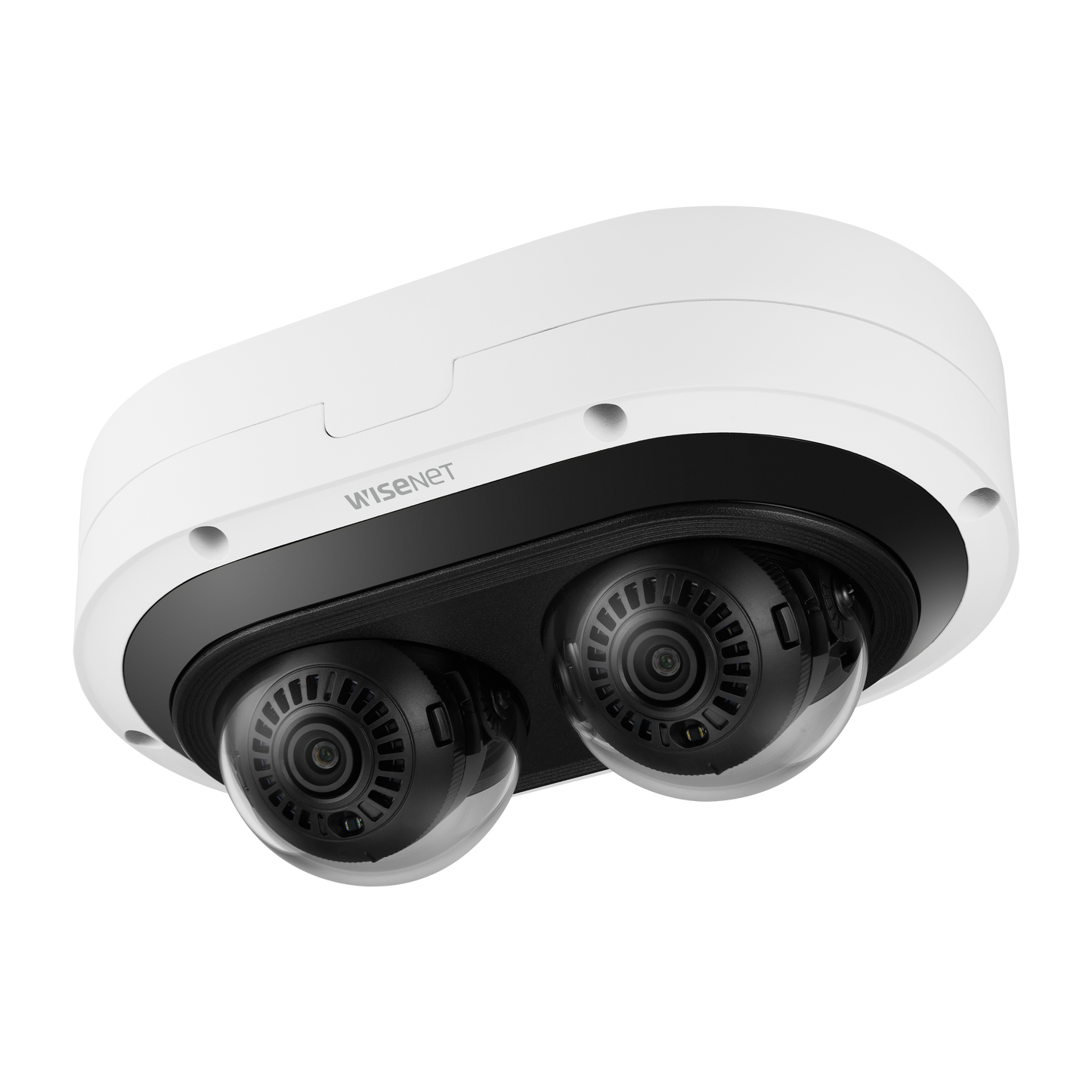

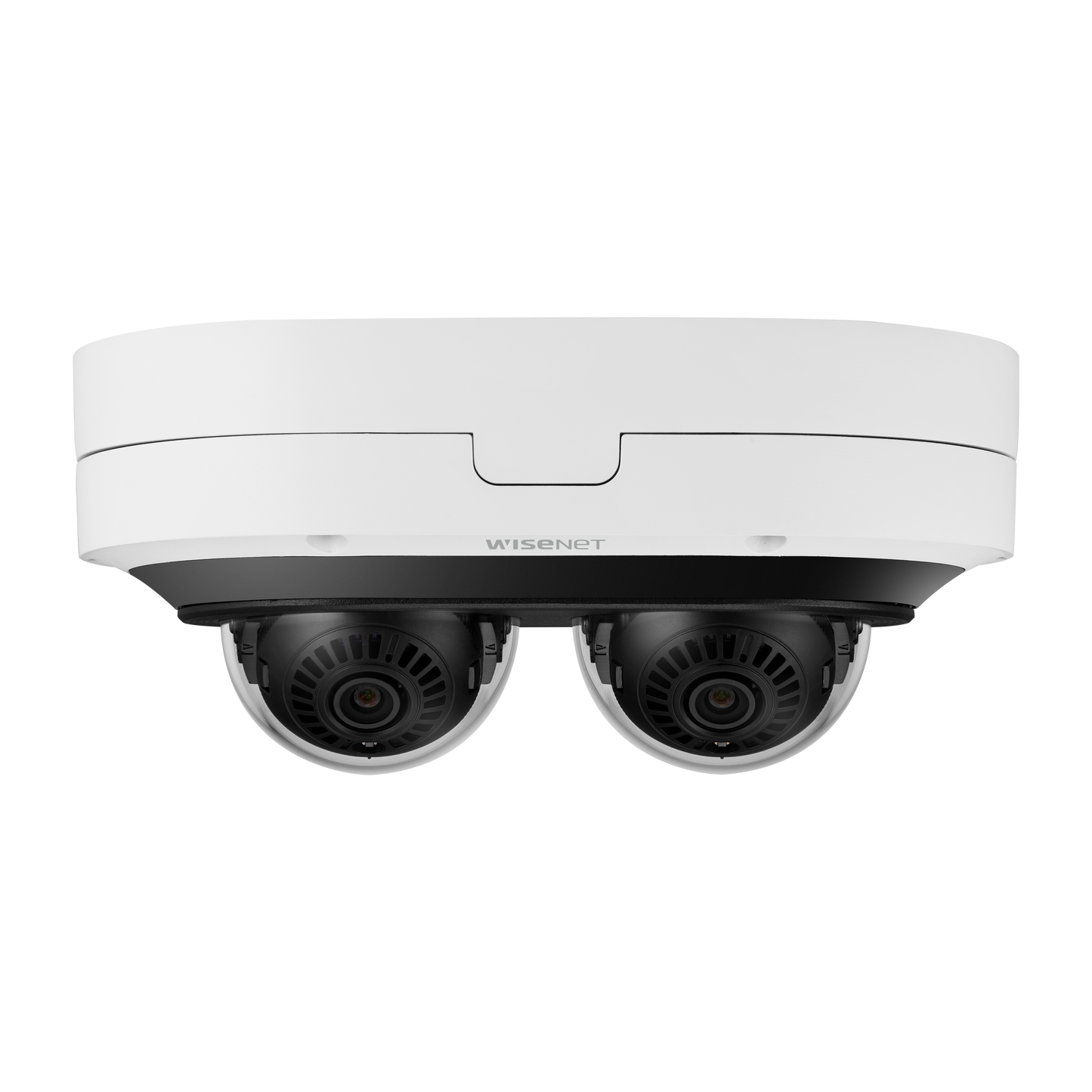

Monitor an indoor or outdoor area with the white PNM-12082RVD 6MP 2-Sensor Multidirectional Network Dome Camera with Night Vision from Hanwha Techwin. This unit uses two 1/2.8" CMOS image sensors to capture 3328 x 1872 resolution video per sensor at 15 fps. IR LEDs provide up to 82' of night vision. The camera's 3.54-6.69mm motorized varifocal lenses each deliver a 96 to 47° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This camera complies with ONVIF profiles S and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-, NEMA 4X-, and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
- IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video compressions
- CBR and VBR
- WiseStream II support
- Unicast and multicast streaming
- Electronic shutter speed
- Simple focus
- Lens distortion correction
- Three-axis angle adjustments (0 to 355° horizontal pivot, 0 to 78° vertical pivot, and 0 to 180° rotation)
- 4.92' minimum object distance
- BLC, HLC, 120 dB WDR, and SSDR
- Digital noise reduction (WiseNR and SSNR V)
- Gain control
- Adjustable white balance
- Privacy masking for up to 4 quadrangular zones
- Flip, mirror, and hallway view (90, 270°) video rotation
- Audio and alarm I/O via SPM-4210 I/O box (available separately)
- Analytics include: defocus detection, motion detection (8 polygonal zones), tampering, virtual line (crossing, direction), and virtual area (loitering, enter, exit)
- Supported browsers include: Chrome, Safari, Firefox, and Edge
SPECS
| Video | |
| Imaging Device | 1/2.8" CMOS x 2CH |
| Resolution | 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: 6MP Max.15fps MJPEG: Max.15fps |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.16lux(F1.67, 1/30sec, 30IRE) BW: 0.016lux(F1.67, 1/30sec, 30IRE), 0lux(IR LED on) |
| Video Out | USB: micro USB Type B, 1280x720 for installation |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3.54~6.69mm(1.9x) motorized varifocal |
| Max. Aperture Ratio | F1.67(Wide)~F2.64(Tele) |
| Angular Field of View | H: 96˚(Wide)~47˚(Tele) V: 51˚(Wide)~26˚(Tele) D: 113˚(Wide)~54˚(Tele) |
| Min. Object Distance | 1.5m(4.92ft) |
| Focus Control | Simple focus |
| Lens Type | Fixed IRIS |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0~355° / 0~78° / 0~180° |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | WiseNR, SSNRⅤ |
| Digital Image Stabilization | None |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Off / Max gain / Manual |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Analytics events* - Defocus detection, Motion detection, Tampering, Virtual line(Crossing/Direction), Virtual area(Loitering/Enter/Exit) * Support Audio detection, Sound classification via optional SPM-4210 I/O box |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | * Support Alarm via optional SPM-4210 I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Alarm output via optional SPM-4210 I/O box |
| Audio Streaming | None |
| Audio In | * Audio in via optional SPM-4210 I/O box |
| Audio Out | * Audio out via optional SPM-4210 I/O box |
| IR Viewable Length | 15m (49ft) 25m(82ft) based on scene |
| IR Illuminator (Optional) | None |
| IR Radiation angle | None |
| IR LED | None |
| IR Wavelength | None |
| IR Operation | None |
| Water Removal | None |
| Auto Tracking | None |
| Coaxial Protocol | None |
| Color Palettes | None |
| Radiometry | |
| Temperature Detect Range | None |
| Temperature Accuracy | None |
| Temperature Detection | None |
| Additional | None |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | None |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| SIP support (VoIP, Peer-to-peer, SIP/PBX integration) | None |
| Security | TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 1slot Max. 512GB |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing) * Start up should be above at -35˚C |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 95% RH(Non-condensing) |
| Certification | IP66/IP67, NEMA4X, IK10 |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption | PoE+: Max 18.3W, typical 13.5W |
| Mechanical | |
| Color / Material | White / Aluminum Hard-coated dome bubble |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67") / 1330g |
| Compatible Conduit hole / Gangbox | 1/2" (M20) single, double, 4" octagon, 4" square |

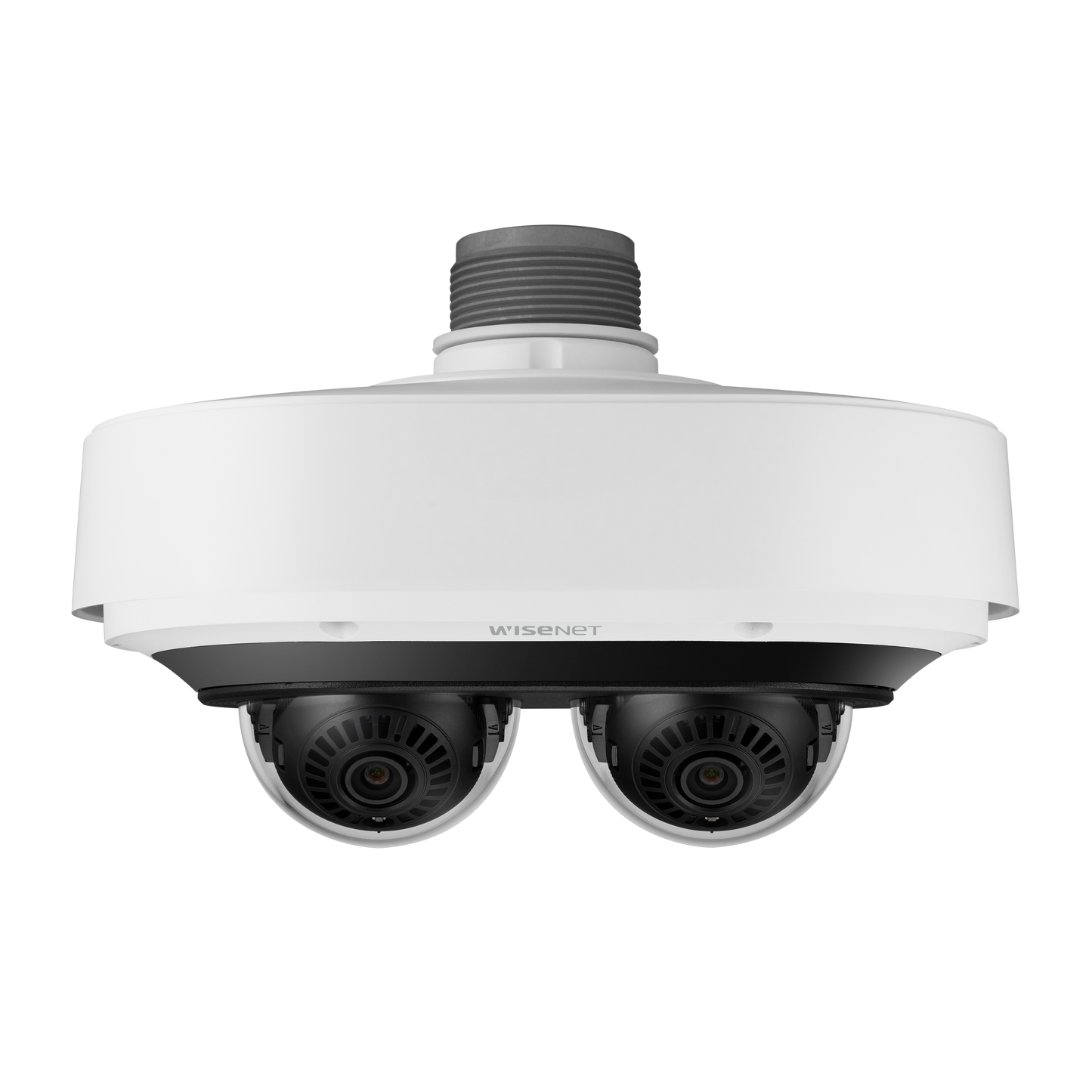

| Hanging Mount (Dome) | SBP-215HMW |
| Skin Cover (Dome) | None |

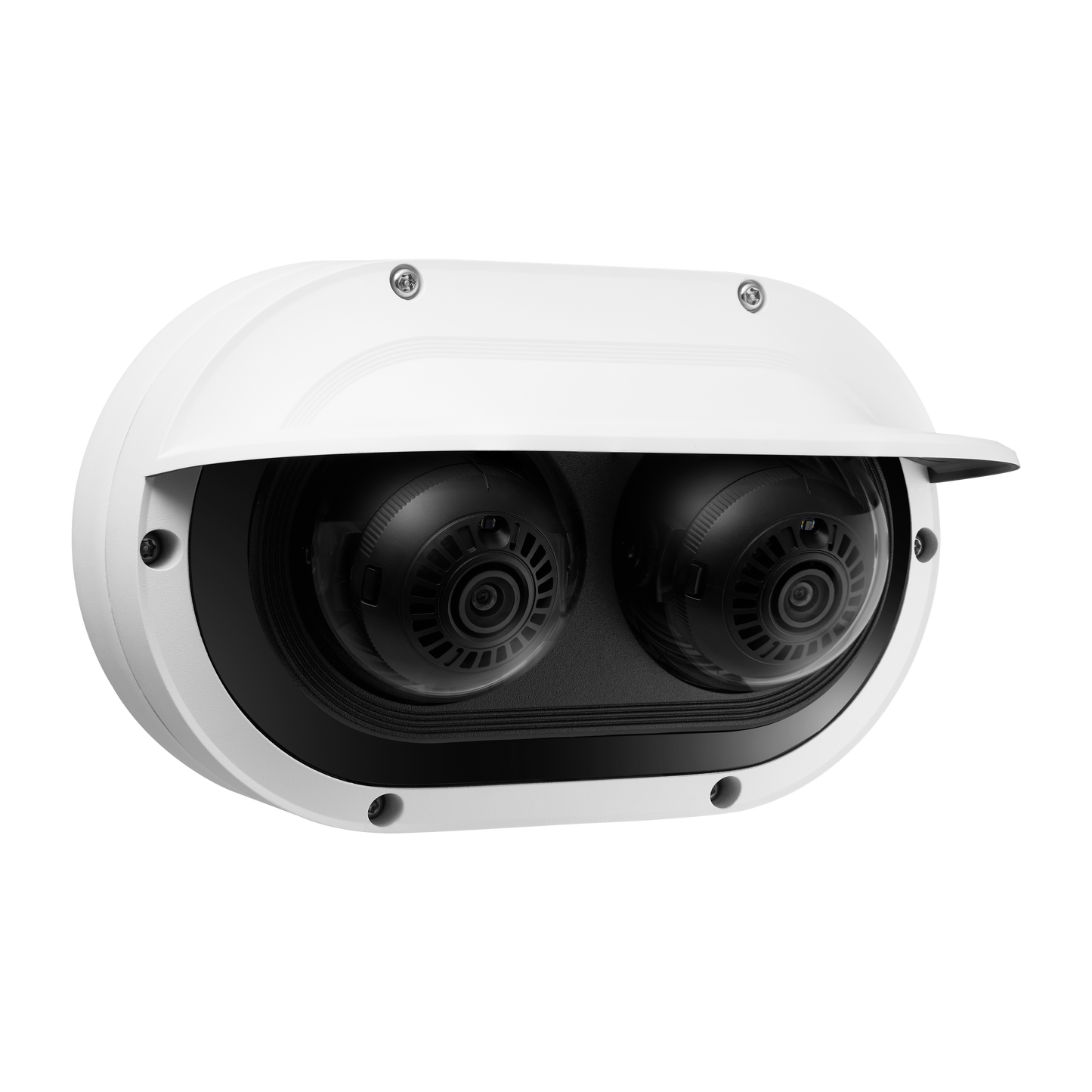

| Weather Cap (Dome) | SBV-215WCW |
| Power Module | None |
| Backbox | None |
| Certifications & Standards | |
| Network | None |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/67, IEC/EN 62262 IK10 NEMA 250 type 4X |
| Video | None |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 59.9m(196.62ft) / Tele: 153.1m(502.22ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.0m(78.65ft) / Tele: 61.2m(200.89ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.0m(39.32ft) / Tele: 30.6m(100.44ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.0m(19.66ft) / Tele: 15.3m(50.22ft) |
