Hanwha
Hanwha Vision QNV-6012R1
Hanwha Vision QNV-6012R1
Regular price
$257.00 USD
Regular price
$395.00 USD
Sale price
$257.00 USD
Unit price
/
per
Shipping calculated at checkout.
No reviews
Couldn't load pickup availability
- In Stock
Share
Key Features
- Maximum 2megapixel (1920 x 1080) resolution
- 0.03Lux (Color), 0Lux (B/W, IR LED on)
- 2.8mm fixed lens
- Maximum 30fps@2MP all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- Hallway view (90/270), LDC support
- Micro SD/SDHC/SDXC memory slot (Max. 128GB)
- IR viewable length 20m
- IP66, IK10, PoE, 12VDC
Description

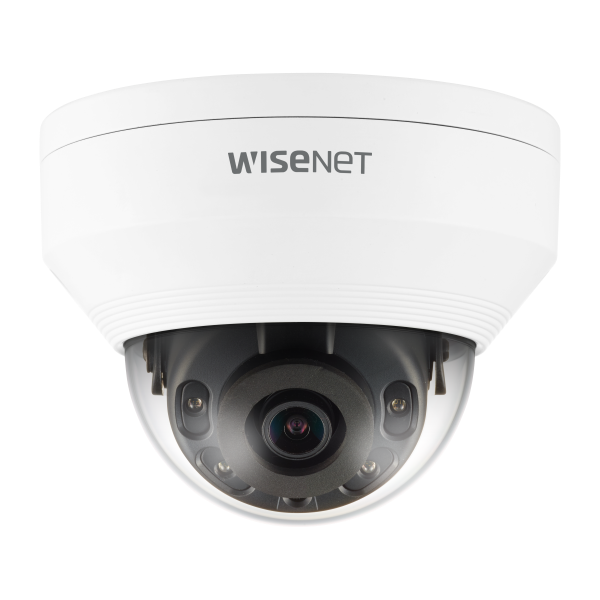

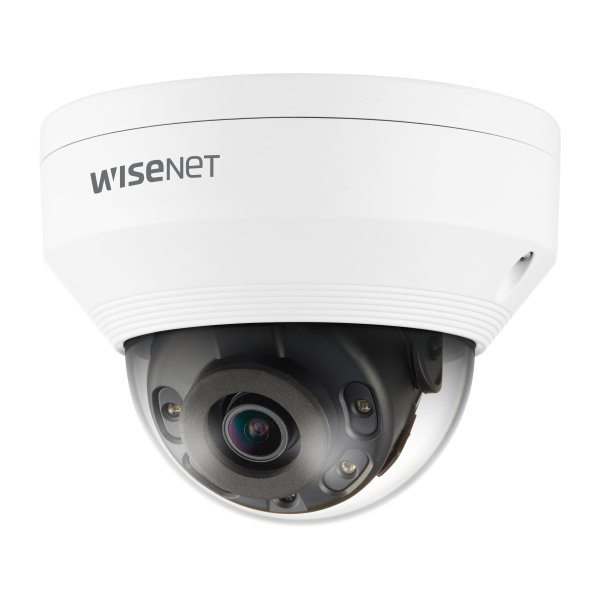

Monitor an indoor or outdoor area with the white Wisenet Q Series QNV-6012R1 2MP Outdoor Network Dome Camera from Hanwha Techwin. This unit uses a 1/2.8" progressive scan CMOS image sensor to capture 1080p resolution video at 30 fps. An IR LED provides up to 66' of night vision. The camera's 2.8mm fixed lens delivers a 113.7° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
- IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video compressions
- CBR and VBR
- WiseStream II support
- Unicast and multicast streaming
- Lens distortion correction
- 1.64' minimum object distance
- Three-axis angle adjustment (0 to 350° horizontal pivot, 0 to 67° vertical pivot, and 0 to 355° rotation)
- BLC, 120 dB WDR, and SSDR
- Digital noise reduction (SSNR)
- Gain control
- Adjustable white balance
- Privacy masking for up to 6 rectangular zones
- Flip, mirror, and hallway view video rotations (90 and 270°)
- Alarm input and output
- Alarm triggers include: analytics, network disconnect, and alarm input
- Analytics include: defocus detection, directional detection, motion detection (4 polygonal zones), enter/exit, tampering, and virtual line
- Supported browsers include: Chrome, Safari, Firefox, and Edge
SPECS
| Video | |
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 113.7 / V: 61.5° / D: 134.5° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~67˚ / 0˚~355˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| IR Viewable Length | 20m(65.62ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.40W, typical 6.00W 12VDC: Max 6.40W, typical 5.10W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø120.3x91.7mm(Ø4.74x3.61"), 510g(1.12 Ib) |
| Compatible Conduit hole / Gangbox | - SBO-120GP : Single, Double, 4" Octagon |
| Hanging Mount (Dome) | SBP-122HMW |
| Backbox | SBV-120GW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 25.1m(82.21ft) |
| Observe (63PPM/ 19PPF) | 10.0m(32.89ft) |
| Recognize (125PPM/ 38PPF) | 5.0m(16.44ft) |
| Identify (250PPM/ 76PPF) | 2.5m(8.22ft) |
