Hanwha Vision QNV-6022R1
Hanwha Vision QNV-6022R1
Regular price
$257.00 USD
Regular price
$395.00 USD
Sale price
$257.00 USD
Unit price
/
per
Shipping calculated at checkout.
No reviews
Couldn't load pickup availability
- In Stock
Share
Key Features
- 2 Megapixel (1920 x 1080) resolution
- Built-in 4mm fixed lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 25m, IP66, IK10
- Hallway view support, WiseStream II
- Analog video out for easy installation
- LDC support (Lens Distortion Correction)
- Genetec Stratocast compatible
Description

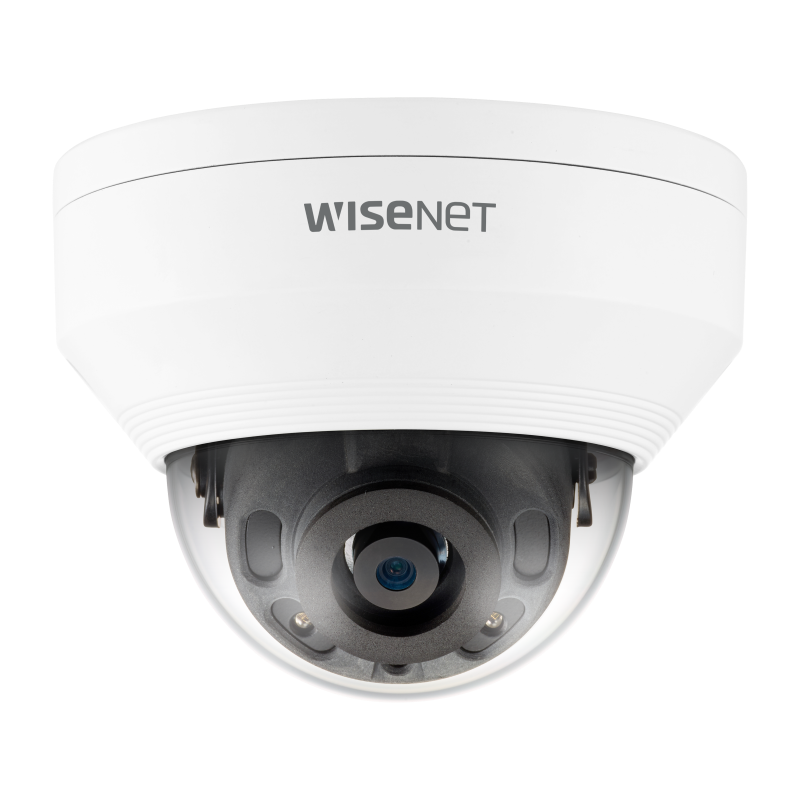

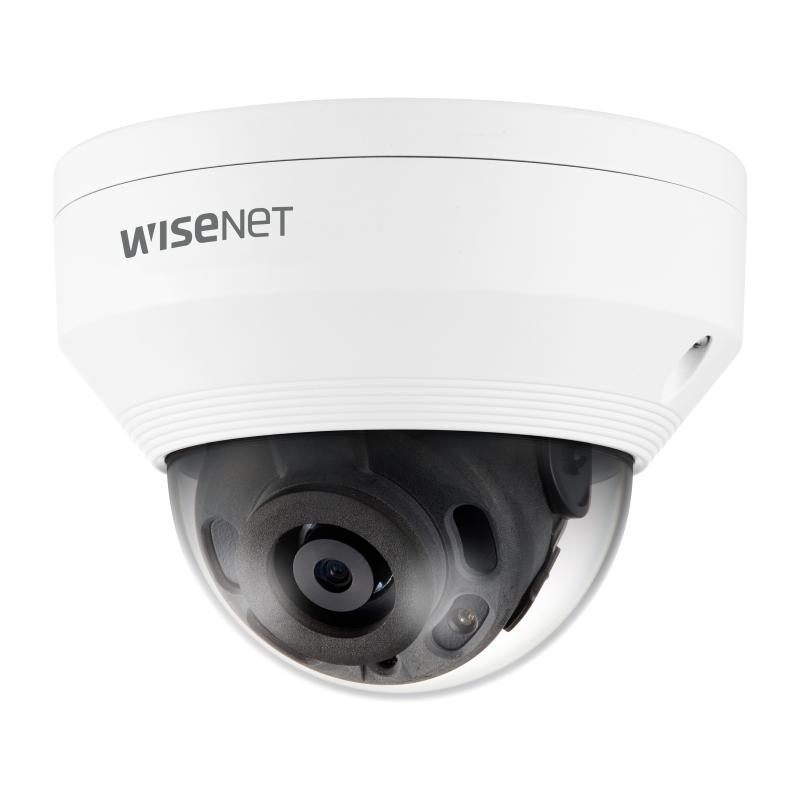

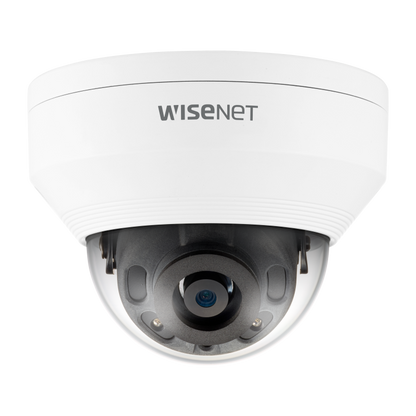

Monitor an indoor or outdoor area with the white Wisenet Q Series QNV-6022R1 2MP Network Dome Camera from Hanwha Techwin. This unit uses a 1/2.8" progressive scan CMOS image sensor to capture 1080p resolution video at 30 fps. IR LEDs provide up to 82' of night vision. The camera's 4mm fixed lens delivers an 87.6° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
- IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video compressions
- CBR and VBR
- WiseStream II support
- Unicast and multicast streaming
- Three-axis angle adjustment (0 to 350° horizontal pivot, 0 to 67° vertical pivot, and 0 to 355° rotation)
- Additional features include: lens distortion correction, backlight compensation, dynamic range (120 dB WDR and SSDR), digital noise reduction (SSNR), gain control, white balance, privacy masking for up to six rectangular zones, and flip, mirror, and hallway view video rotations (90 and 270°)
- Analytics include: defocus detection, directional detection, motion detection (four polygonal zones), enter/exit, tampering, and virtual line
- Supported browsers include: Chrome, Safari, Firefox, and Edge
SPECS
| Video | |
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 87.6 / V: 46.4° / D: 104.5° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~67˚ / 0˚~355˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| IR Viewable Length | 25m(82.02ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.40W, typical 6.00W 12VDC: Max 6.40W, typical 5.10W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø120.3x91.7mm(Ø4.74x3.61"), 510g(1.12 Ib) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 40.0m(131.36ft) |
| Observe (63PPM/ 19PPF) | 16.0m(52.54ft) |
| Recognize (125PPM/ 38PPF) | 8.0m(26.27ft) |
| Identify (250PPM/ 76PPF) | 4.0m(13.14ft) |
